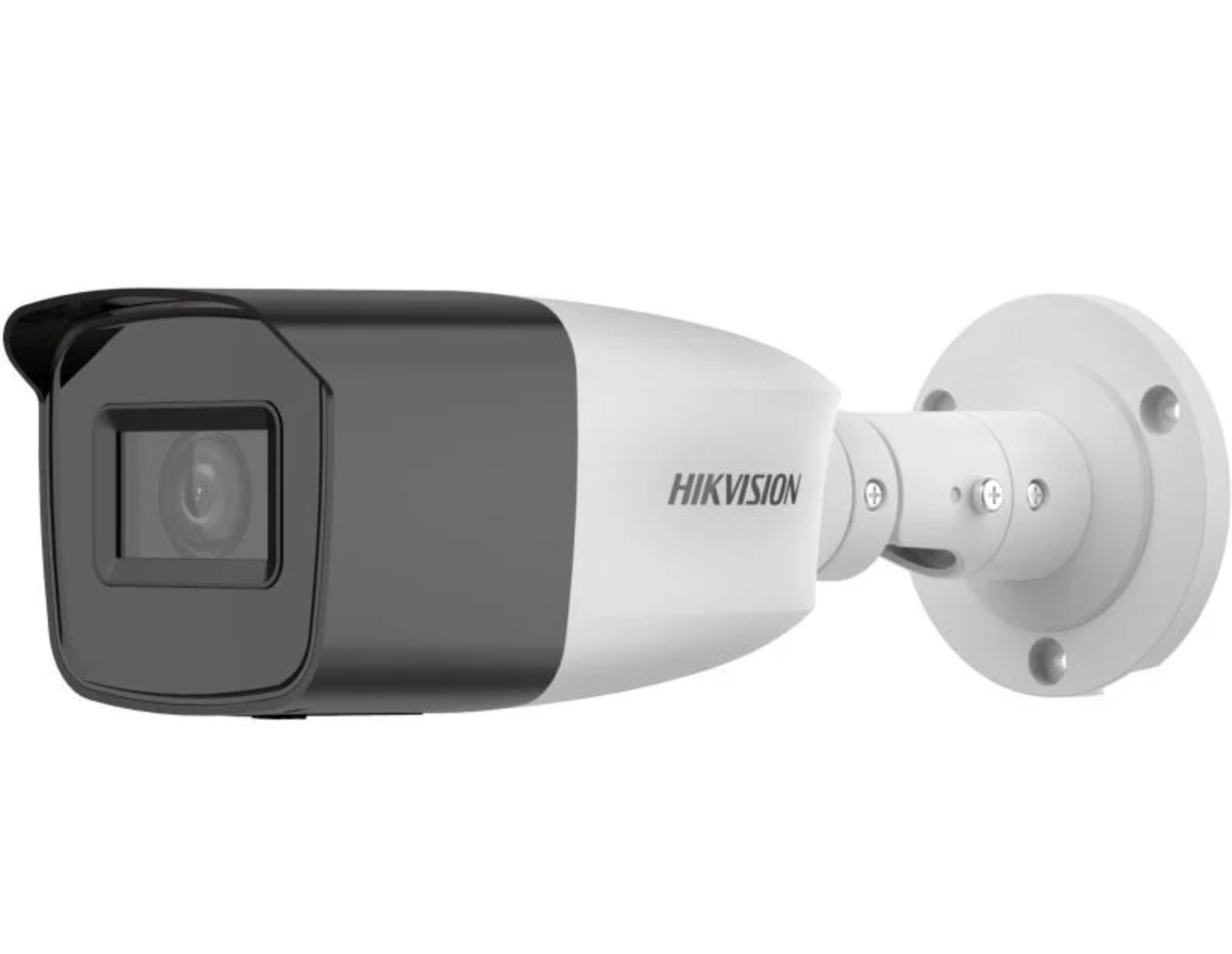

Hikvision 2MP 2.7-13.5mm Manual Varifocal Bullet Camera

Hikvision 2MP 2.7-13.5mm Manual Varifocal Bullet Camera

Features

• High quality imaging with 2 MP
• Max. Resolution - 1920 × 1080
• 2.7 mm to 13.5 mm Manual varifocal lens
• Horizontal FOV: 100° to 30°
• Vertical FOV: 52° to 17°
• Diagonal FOV: 116° to 34.5°
• Up to 40 m IR distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)
• 12 VDC ± 25%, Max. 5 W (Purchase PSU separately)

Technical Specifications:

Camera
Image Sensor: 2 MP CMOS
Signal System: PAL/NTSC
Max. Resolution: 1920 (H) × 1080 (V)
Frame Rate: TVI: 1920 × 1080 @ 30 fps, 1920 × 1080 @ 25 fps; AHD: 1920 × 1080 @ 30 fps, 1080P @ 25 fps; CVI: 1920 × 1080 @ 30 fps, 1080P @ 25 fps; CVBS: PAL/NTSC
Min. Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Lens Mount: Φ14
Day & Night: ICR
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Lens
Lens Type: 2.7 mm to 13.5 mm varifocal lens
Focal Length & FOV: Horizontal FOV: 100° to 30°, vertical FOV: 52° to 17°, diagonal FOV: 116° to 34.5°

Illuminator
Supplement Light Range: IR: Up to 40 m

Day/Night Mode: Auto/Color/BW (Black and White)
Image Parameters Switch: STD/HIGH-SAT
White Balance: Auto/Manual
Image Enhancement: DWDR, BLC, HLC, Global
Noise Reduction: 2D DNR
Image Settings: Brightness, Smart IR, Sharpness, AGC
Wide Dynamic Range (WDR): Digital WDR
Language: English

Interface
Video Output: Switchable TVI/AHD/CVI/CVBS

General
Power: 12 VDC ± 25%, Max. 5 W
Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensing)
Material: Front cover: Metal, Main body: Plastic
Communication: HIKVISION-C
Dimension: 83.3 mm × 78.2 mm × 256.4 mm (3.2" × 3" × 10")
Weight: Approx. 580 g (1.28 lb.)

Approval
Protection: IP67
